2007 - 2012 Ram Cummins 2500 3500 4500 5500 | EFI Live

**If you purchased an EFI LIVE License ONLY for $125, you are confirming that you already have a flash device (AutoCal or FlashScan). If you do not know what either of those are you need to select the AutoCal Device + EFI Live License option to flash your truck.

Get more from your 2007-2012 RAM 6.7L Cummins with custom EFI Live tuning designed to improve horsepower, torque, drivability, and overall performance.

Available for RAM 2500 through 5500 pickups and cab chassis applications, tuning can be configured with a single power level or CSP5 switchable tuning, with power levels tailored specifically for 2007-2009 and 2010-2012 trucks. Compatible 68RFE-equipped trucks can also be paired with transmission tuning to improve converter lockup, shift strategy, line pressure, and torque management.

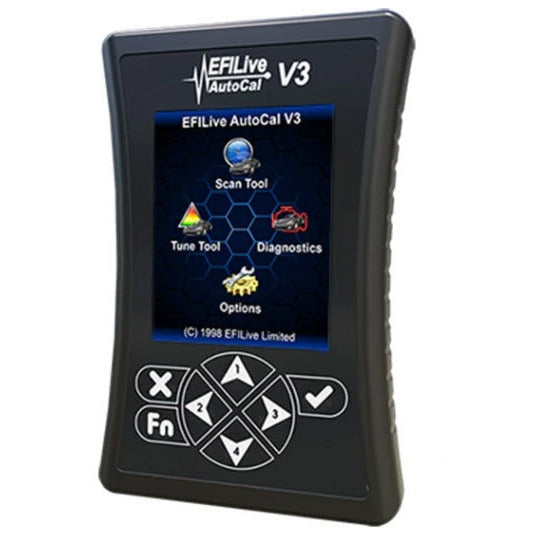

Tuning is deployed through an EFI Live AutoCal or FlashScan device, with licensing and device options available depending on your existing hardware.

_____________________________________________

Fits

• Ram Cummins 2500 / 3500 / 4500 / 5500
  • 2007 / 2008 / 2009 / 2010 / 2011 / 2012
  • Pickups
  • Cab Chassis / Incomplete Trucks

Compatible Transmissions:

• • Auto 68RFE – Found in automatic 2500 pickups
  • Auto Aisin – Found in automatic 3500 / 4500 / 5500 pickups and Cab Chassis / Incomplete Trucks
  • Manual G56

_____________________________________________

The Benefits of Tuning

• Increased horsepower
• Increased torque
• Potential improvement in fuel economy
• Improved towing performance
• Customized drivability

Single HP Tune: Select one preferred horsepower level when ordering. The selected tune is loaded as your single power level.

CSP5 Tune: Includes five switchable power levels based on your truck's model year.

_____________________________________________

Switchable Tuning

CSP5 Switchable Tuning allows you to select between five predetermined power levels without reflashing the truck.

Power Levels

2007-2009 Cummins CSP5 Power Levels

• +30HP – Stock / Optimized
• +60HP – Tow / Heavy Tow
• +100HP – EcoTow / Light Tow
• +120HP – Street
• +180HP – Maxx

2010-2012 Cummins CSP5 Power Levels

• +15HP – Stock / Optimized
• +30HP – Tow / Heavy Tow
• +65HP – EcoTow / Light Tow
• +120HP – Street
• +160HP – Maxx

How to Change Power Levels

CSP5 power levels can be selected through the EFI Live AutoCal Device or with a CSP4/CSP5 Pass Through Switch.

A physical CSP4/CSP5 Pass Through Switch is highly recommended for easier tune selection. The switch allows you to change power levels on the go without stopping the truck and waiting for it to reflash. Simply turn the rotary dial to the desired tune position while the truck is running or driving.

The switch plugs into the OBD-II port and includes a pass-through port, allowing another OBD-II device, such as a monitor, to remain connected.

_____________________________________________

Transmission Tuning

Transmission tuning is available only for 68RFE transmissions.

Benefits of Transmission Tuning

• Earlier converter lockup
• Increased line pressure
• Revised shift strategy to reduce sluggish shifting
• Earlier downshifts with less throttle input
• Revised torque management

Custom transmission tuning can improve shift behavior, towing performance, and how the transmission responds to increased engine power.

How to Tell the Difference Between Automatic Transmissions

• 68RFE: The transmission pan looks similar to a turtle shell. The dipstick is located on the passenger side of the engine bay.
• Aisin: The transmission pan is flat and says Aisin on the side. The dipstick is located on the driver side of the engine bay.

_____________________________________________

Requirements

IMPORTANT:

• Requires an EFI Live AutoCal Device + appropriate licensing, unless you already own a compatible AutoCal or FlashScan device with the required licensing.
• A Windows-based computer is required to load and flash the tuning.
• Appropriate licensing is required for 68RFE transmission tuning.
• Transmission tuning is available only for 68RFE transmissions.
• Currently, the only aftermarket tuning modification accepted for this platform is an aftermarket turbo.
• Detailed flashing instructions are included with every tune.

EFI Live License Only – $125

Selecting the EFI Live License Only option confirms that you already own a compatible AutoCal or FlashScan device.

If you do not already have one of these devices, select the AutoCal Device + EFI Live License option.

_____________________________________________

How Does This Work?

1. Order your device, tuning package, licensing, and required parts.
2. Complete the Tune Order Form with your vehicle information and modifications.
3. Connect your EFI Live device and send us the required stock readout.
4. Our calibrators write your custom tune files, typically within 24–48 business hours after receiving all required information.
5. Transfer the tune to your AutoCal and flash the truck using the provided instructions.

Devices typically ship within 48 business hours after all required vehicle and order information has been received.

Technical support is included if assistance is needed during installation or flashing.

_____________________________________________

What You'll Need

For a 2007-2012 Ram Cummins EFI Live full kit, you’ll need:

• Device + License
• Tune Package
• CSP4/CSP5 Pass Through Switch: Highly recommended for CSP5 switchable tuning
• EGR Solution
• DPF / Exhaust Solution

Already Have an EFI Live Device?

CLICK HERE for EFI Live's instructions on locating your device serial number and authentication code.

The device is used to flash your custom tune file into the truck, while the required hardware addresses the applicable factory systems.

After purchase, tunes are typically completed within 24-48 business hours from the time you have purchased, submit stock read out [if needed], and submit the tune order form.

Devices typically ship within 48 business hours, after we have received all required vehicle information, submitted tune order form, and stock readout files.

Instructions are provided based on your specific package.

Software Downloads & Instructions

Please ensure you understand and comply with all applicable laws and regulations in your local jurisdiction before purchasing or installing this product.

_____________________________________________

Why Use Torque Works Diesel?

✅ In-house custom calibrations tailored to your truck and intended use
✅ Data-log support and revisions for drivability, reliability, and performance
✅ Financing available to make upgrades more manageable
✅ After-purchase support
✅ Detailed installation and flashing instructions
✅ Technical support included

At Torque Works Diesel, our tunes are custom written in-house.

You’re not receiving a generic third-party calibration used on every truck.

Built, tested, and refined in-house.

_____________________________________________

Financing

Financing options are available to make your upgrades easier.

Click Here for our Financing Page

_____________________________________________

See Our Customers

Check out trucks tuned by Torque Works Diesel:

Tuned by TWD Customer Page

_____________________________________________

Questions?

FAQs

Email Us: Support@TorqueWorksDiesel.com
